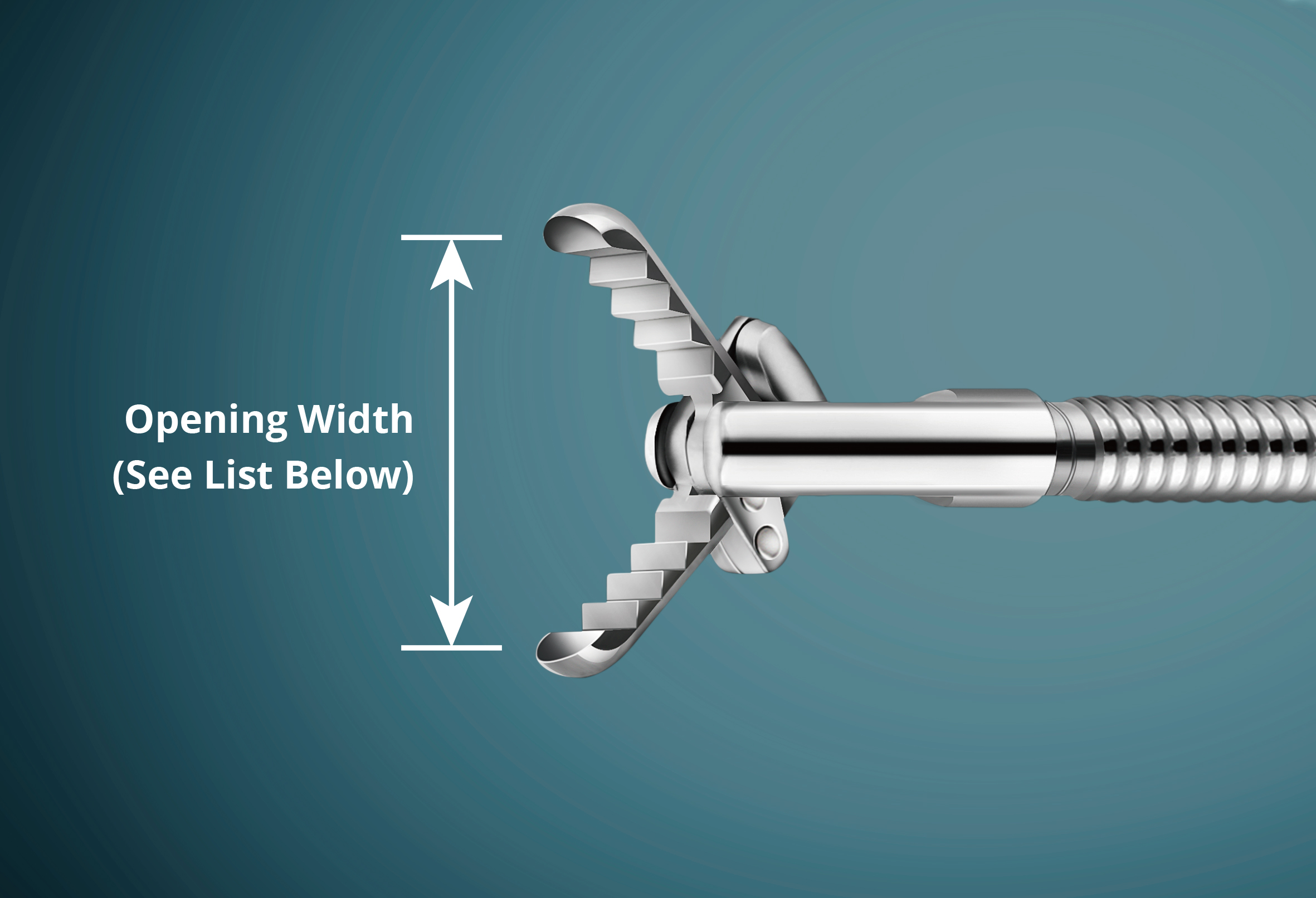

| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810GK | Ø1.8x1000mm | ≥Ø2.0mm | 12mm | Bronchoscopy |
| AF-D1812GK | Ø1.8x1200mm | ≥Ø2.0mm | 12mm | Bronchoscopy |
| AF-D1816GK | Ø1.8x1600mm | ≥Ø2.0mm | 12mm | Gastroscopy |
| AF-D2416GK | Ø2.4x1600mm | ≥Ø2.8mm | 14mm | Gastroscopy |
| AF-D2418GK | Ø2.4x1800mm | ≥Ø2.8mm | 14mm | Gastroscopy |
| AF-D2421GK | Ø2.4x2100mm | ≥Ø2.8mm | 14mm | Colonoscopy |
| AF-D2423GK | Ø2.4x2300mm | ≥Ø2.8mm | 14mm | Colonoscopy |

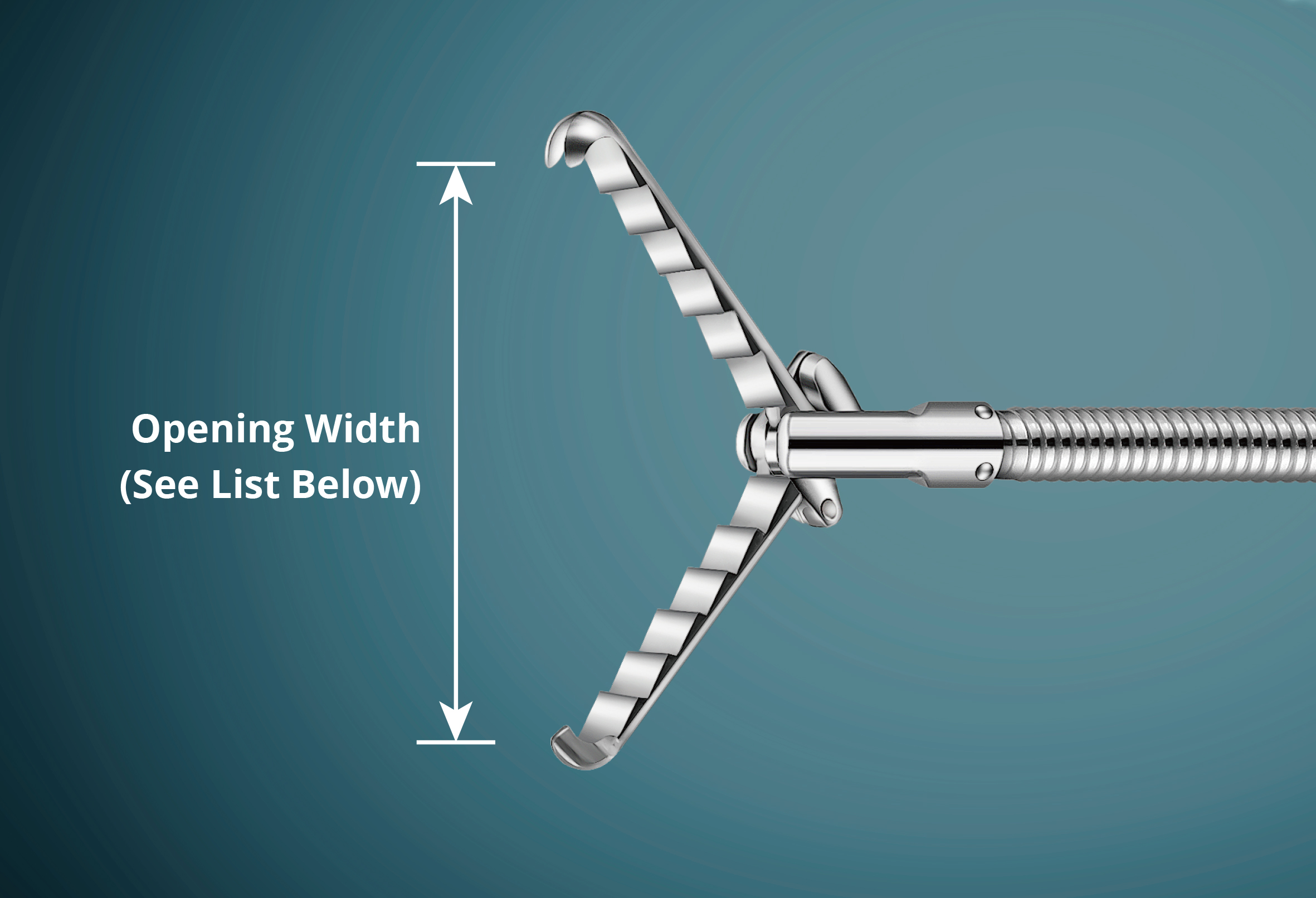

For big objects. Opening width: 14mm.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810GH | Ø1.8x1000mm | ≥Ø2.0mm | 7.5mm | Bronchoscopy |
| AF-D1812GH | Ø1.8x1200mm | ≥Ø2.0mm | 7.5mm | Bronchoscopy |
| AF-D1816GH | Ø1.8x1600mm | ≥Ø2.0mm | 7.5mm | Gastroscopy |
| AF-D2416GH | Ø2.4x1600mm | ≥Ø2.8mm | 8.5mm | Gastroscopy |
| AF-D2418GH | Ø2.4x1800mm | ≥Ø2.8mm | 8.5mm | Gastroscopy |
| AF-D2421GH | Ø2.4x2100mm | ≥Ø2.8mm | 8.5mm | Colonoscopy |
| AF-D2423GH | Ø2.4x2300mm | ≥Ø2.8mm | 8.5mm | Colonoscopy |
For sharp-edged objects.
.jpg)

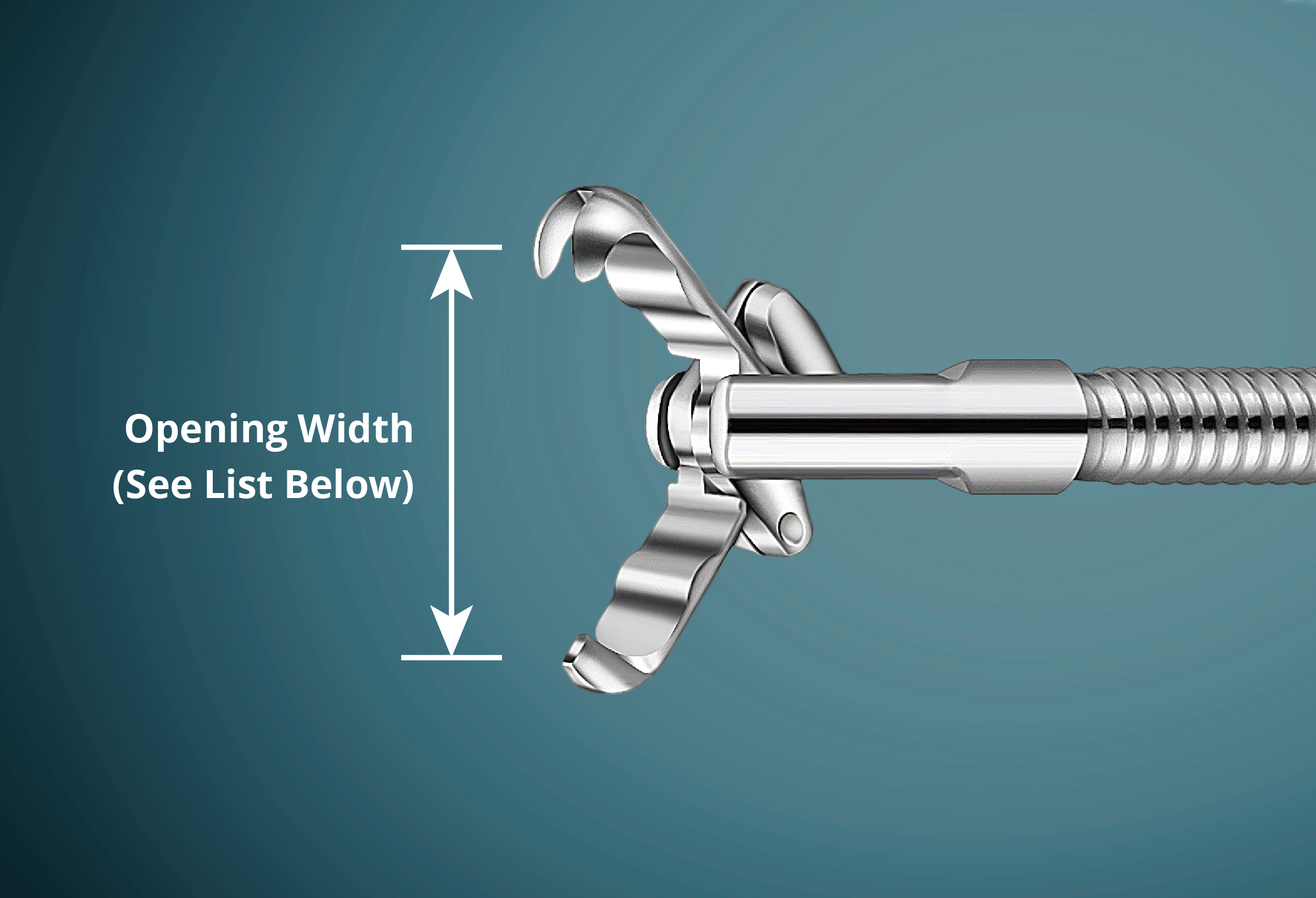

| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1007GI | Ø1.0x700mm | ≥Ø1.2mm | 4mm | Urology |
| AF-D1010GI | Ø1.0x1000mm | ≥Ø1.2mm | 4mm | Urology |
| AF-D1012GI | Ø1.0x1200mm | ≥Ø1.2mm | 4mm | Urology |
| AF-D1810GI | Ø1.8x1000mm | ≥Ø2.0mm | 5mm | Bronchoscopy |
| AF-D1812GI | Ø1.8x1200mm | ≥Ø2.0mm | 5mm | Bronchoscopy |
| AF-D1816GI | Ø1.8x1600mm | ≥Ø2.0mm | 5mm | Gastroscopy |
| AF-D2416GI | Ø2.4x1600mm | ≥Ø2.8mm | 7mm | Gastroscopy |
| AF-D2418GI | Ø2.4x1800mm | ≥Ø2.8mm | 7mm | Gastroscopy |
| AF-D2421GI | Ø2.4x2100mm | ≥Ø2.8mm | 7mm | Colonoscopy |
| AF-D2423GI | Ø2.4x2300mm | ≥Ø2.8mm | 7mm | Colonoscopy |
Rat tooth for flat and hard objects ( e.g.coins ).
.jpg)

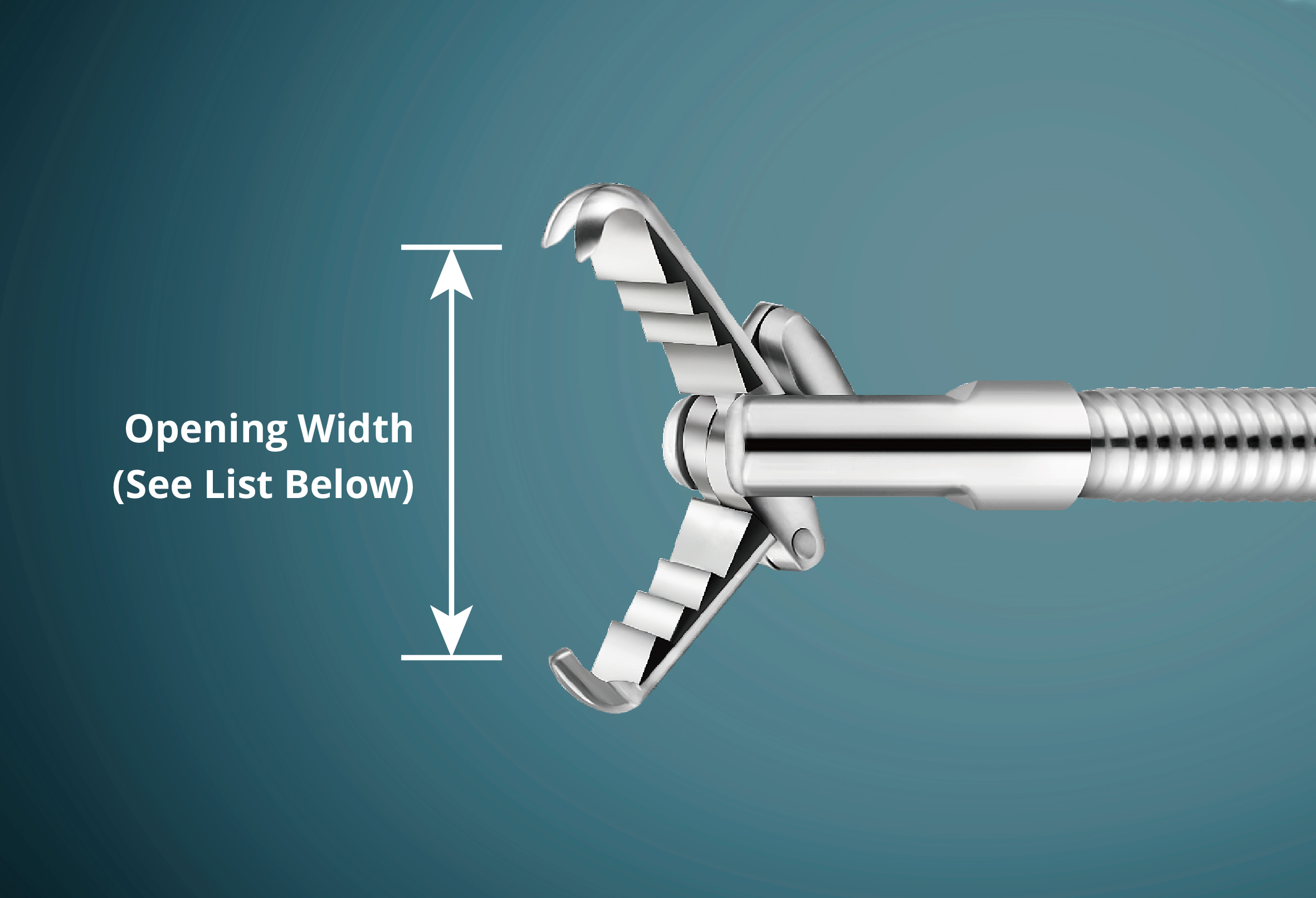

| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810GJ | Ø1.8x1000mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1812GJ | Ø1.8x1200mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1816GJ | Ø1.8x1600mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
| AF-D2416GJ | Ø2.4x1600mm | ≥Ø2.8mm | 8mm | Gastroscopy |
| AF-D2418GJ | Ø2.4x1800mm | ≥Ø2.8mm | 8mm | Gastroscopy |
| AF-D2421GJ | Ø2.4x2100mm | ≥Ø2.8mm | 8mm | Colonoscopy |
| AF-D2423GJ | Ø2.4x2300mm | ≥Ø2.8mm | 8mm | Colonoscopy |
Sharp tooth, long jaws for difficult retrieval of flat and hard objects.
