| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Scope Of Use |
| AF-1807GI | Ø1.8x700mm | ≥Ø2.0mm | Choledochoscopy |
| AF-1815GI | Ø1.8x1500mm | ≥Ø2.0mm | Gastroscopy |
| AF-1825GI | Ø1.8x2500mm | ≥Ø2.0mm | Enteroscopy |
| AF-2415GI | Ø2.4x1500mm | ≥Ø2.8mm | Gastroscopy |
| AF-2417GI | Ø2.4x1700mm | ≥Ø2.8mm | Gastroscopy |
| AF-2421GI | Ø2.4x2100mm | ≥Ø2.8mm | Colonoscopy |
| AF-2423GI | Ø2.4x2300mm | ≥Ø2.8mm | Colonoscopy |

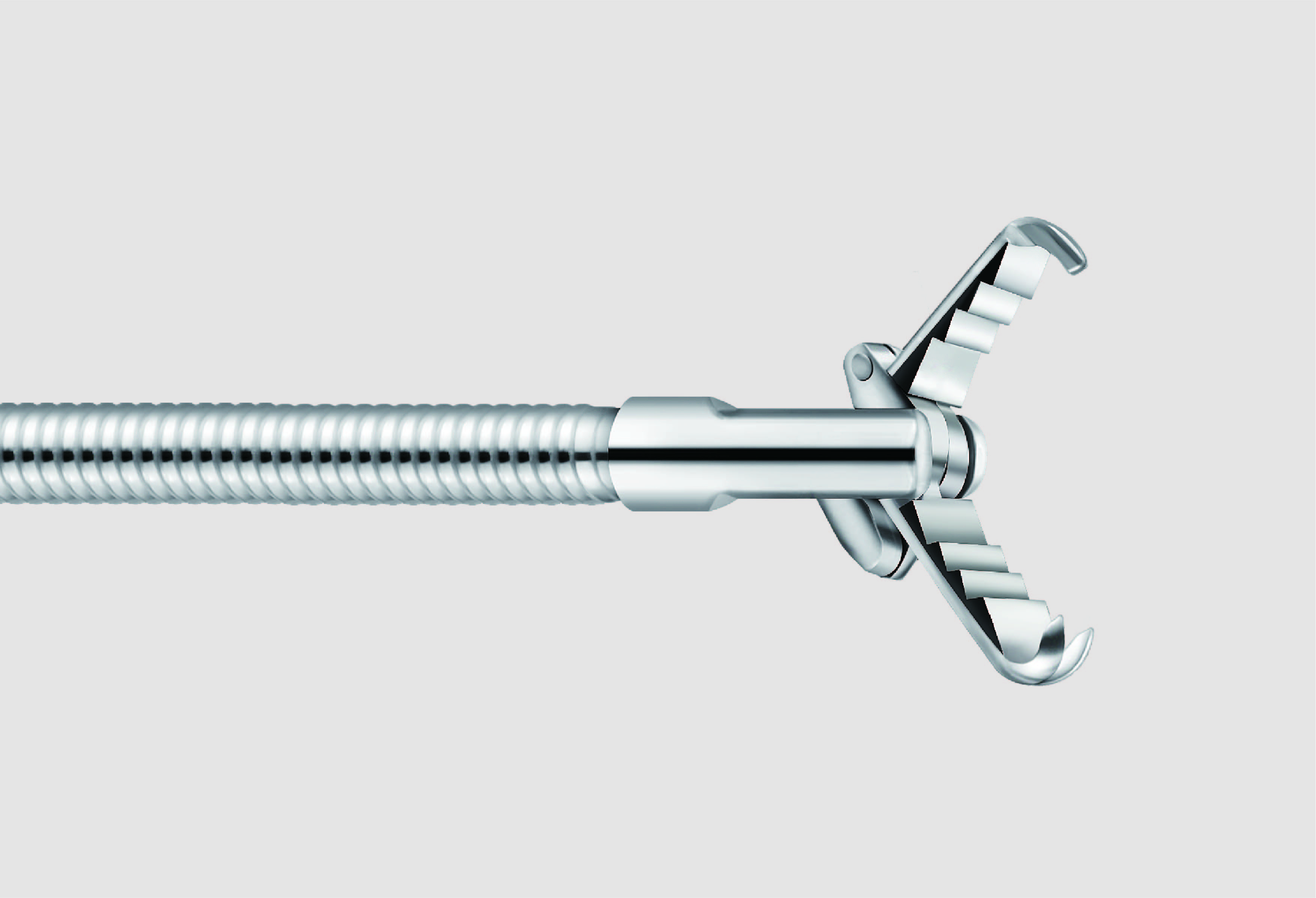

For retrieval of round and slippery objects.
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Scope Of Use |
| AF-1807GJ | Ø1.8x700mm | ≥Ø2.0mm | Choledochoscopy |
| AF-1815GJ | Ø1.8x1500mm | ≥Ø2.0mm | Gastroscopy |
| AF-1825GJ | Ø1.8x2500mm | ≥Ø2.0mm | Enteroscopy |
| AF-2415GJ | Ø2.4x1500mm | ≥Ø2.8mm | Gastroscopy |
| AF-2417GJ | Ø2.4x1700mm | ≥Ø2.8mm | Gastroscopy |
| AF-2421GJ | Ø2.4x2100mm | ≥Ø2.8mm | Colonoscopy |
| AF-2423GJ | Ø2.4x2300mm | ≥Ø2.8mm | Colonoscopy |

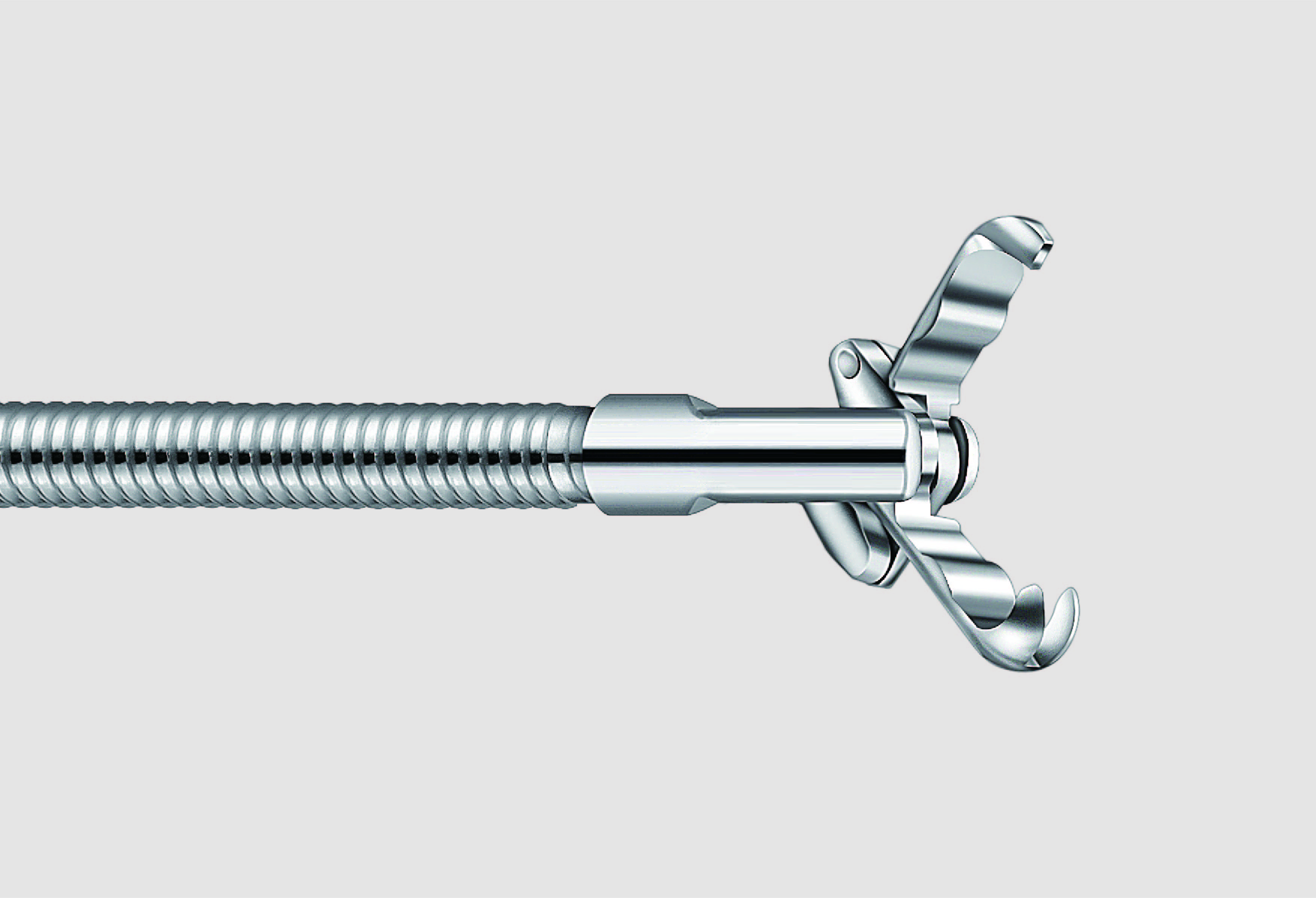

Sharp tooth, long jaws for difficult retrieval of flat and hard objects.
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Scope Of Use |
| AF-1807GH | Ø1.8x700mm | ≥Ø2.0mm | Choledochoscopy |
| AF-1815GH | Ø1.8x1500mm | ≥Ø2.0mm | Gastroscopy |
| AF-1825GH | Ø1.8x2500mm | ≥Ø2.0mm | Enteroscopy |
| AF-2415GH | Ø2.4x1500mm | ≥Ø2.8mm | Gastroscopy |
| AF-2417GH | Ø2.4x1700mm | ≥Ø2.8mm | Gastroscopy |
| AF-2421GH | Ø2.4x2100mm | ≥Ø2.8mm | Colonoscopy |
| AF-2423GH | Ø2.4x2300mm | ≥Ø2.8mm | Colonoscopy |

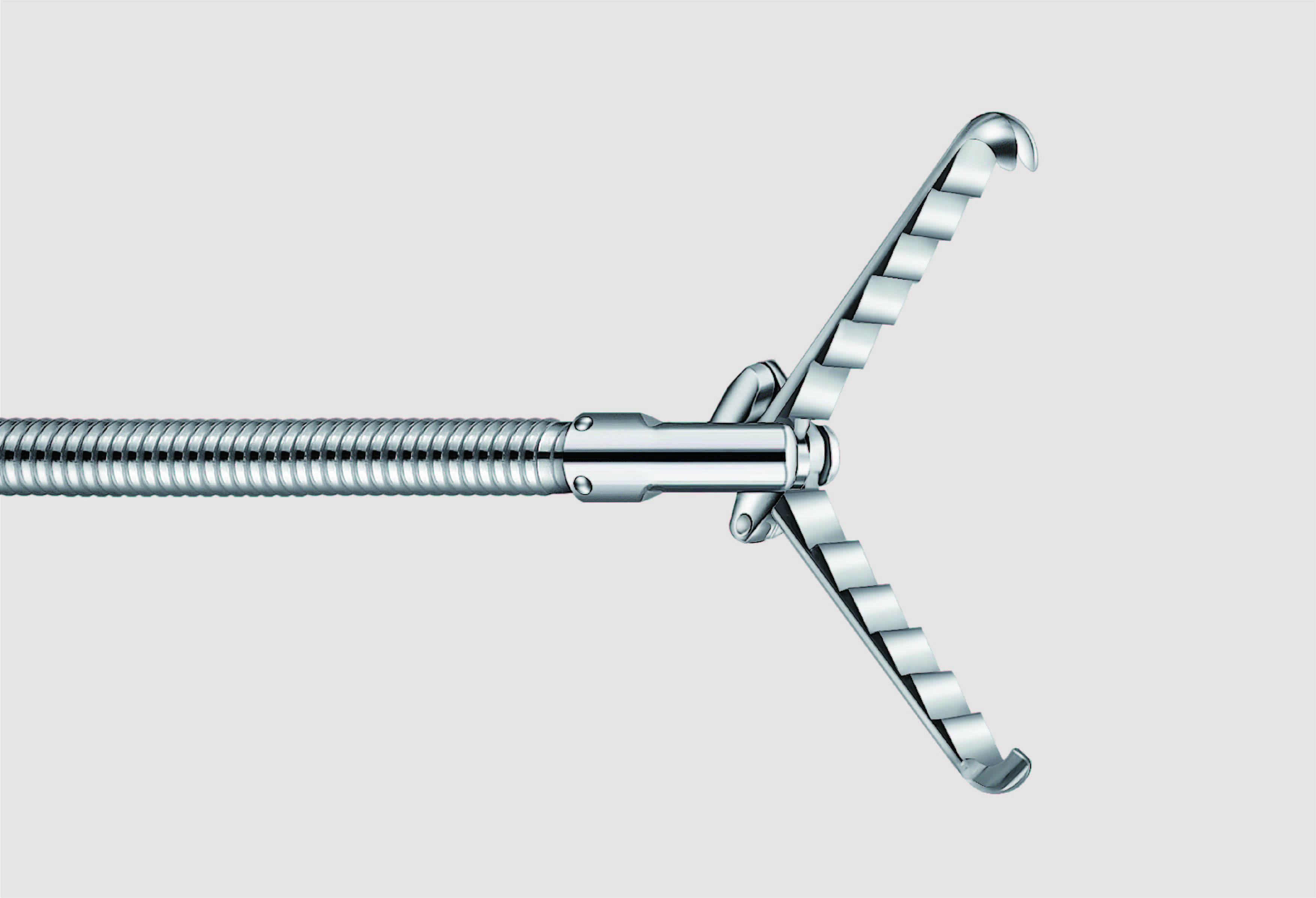

Alligator jaws for sharp edged objects.
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Scope Of Use |
| AF-1807GK | Ø1.8x700mm | ≥Ø2.0mm | Choledochoscopy |
| AF-1815GK | Ø1.8x1500mm | ≥Ø2.0mm | Gastroscopy |
| AF-1825GK | Ø1.8x2500mm | ≥Ø2.0mm | Enteroscopy |
| AF-2415GK | Ø2.4x1500mm | ≥Ø2.8mm | Gastroscopy |
| AF-2417GK | Ø2.4x1700mm | ≥Ø2.8mm | Gastroscopy |
| AF-2421GK | Ø2.4x2100mm | ≥Ø2.8mm | Colonoscopy |
| AF-2423GK | Ø2.4x2300mm | ≥Ø2.8mm | Colonoscopy |
For big objects. Opening width: 15mm.
