Item No.	Tube Diameter & Working Length	Working Channel Diameter	Scope Of Use
AF-1810DZ	Ø1.8x1000mm	≥Ø2.0mm	Bronchoscopy
AF-1815DZ	Ø1.8x1500mm	≥Ø2.0mm	Gastroscopy
AF-1825DZ	Ø1.8x2500mm	≥Ø2.0mm	Enteroscopy
AF-2415DZ	Ø2.4x1500mm	≥Ø2.8mm	Gastroscopy
AF-2417DZ	Ø2.4x1700mm	≥Ø2.8mm	Gastroscopy
AF-2421DZ	Ø2.4x2100mm	≥Ø2.8mm	Colonoscopy
AF-2423DZ	Ø2.4x2300mm	≥Ø2.8mm	Colonoscopy

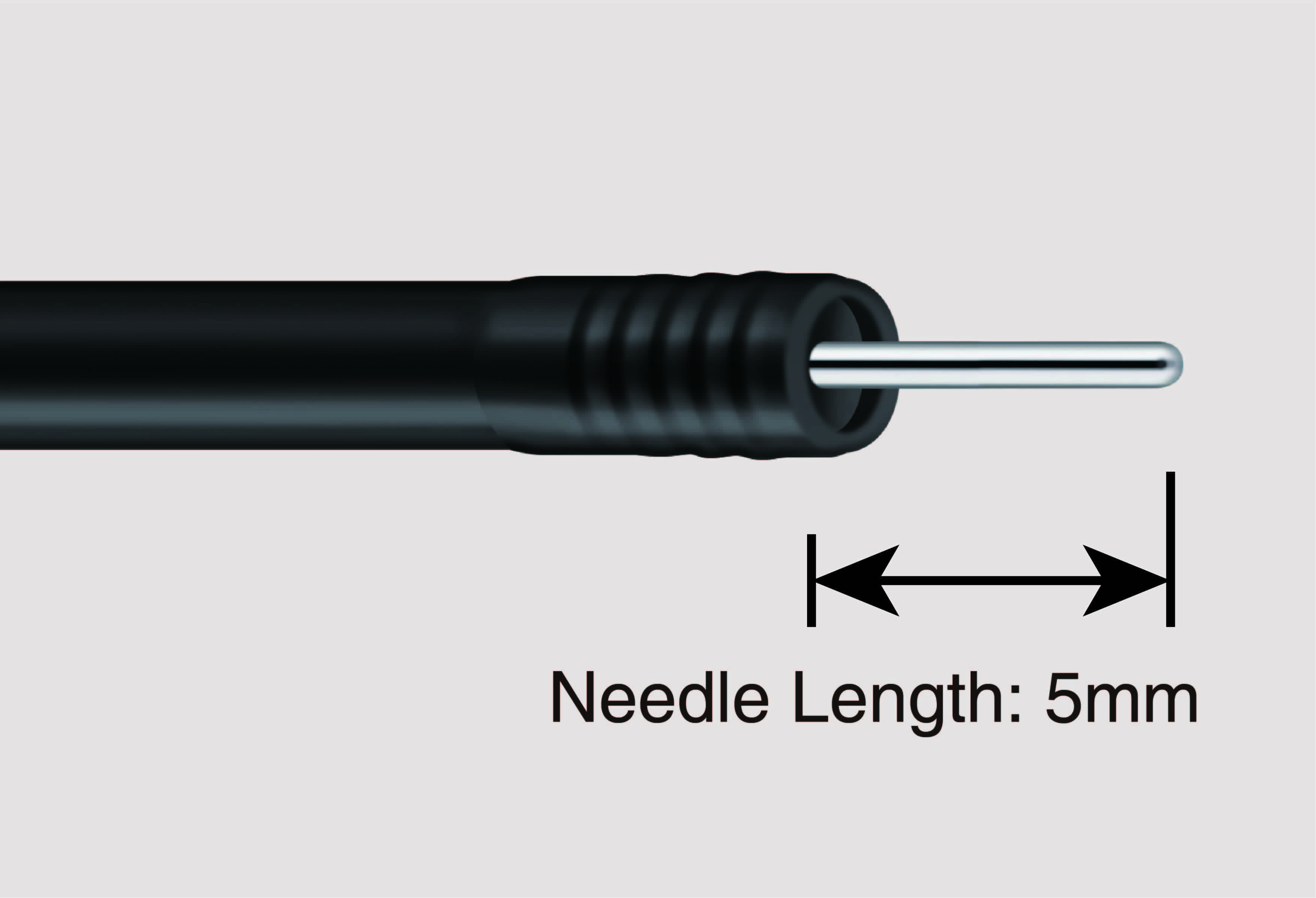

"Cut tissue with high-frequency current. Standard set includes: one handle, two electrode wires."

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Scope Of Use
AF-1810DQ	Ø1.8x1000mm	≥Ø2.0mm	Bronchoscopy
AF-1815DQ	Ø1.8x1500mm	≥Ø2.0mm	Gastroscopy
AF-1825DQ	Ø1.8x2500mm	≥Ø2.0mm	Enteroscopy
AF-2415DQ	Ø2.4x1500mm	≥Ø2.8mm	Gastroscopy
AF-2417DQ	Ø2.4x1700mm	≥Ø2.8mm	Gastroscopy
AF-2421DQ	Ø2.4x2100mm	≥Ø2.8mm	Colonoscopy
AF-2423DQ	Ø2.4x2300mm	≥Ø2.8mm	Colonoscopy

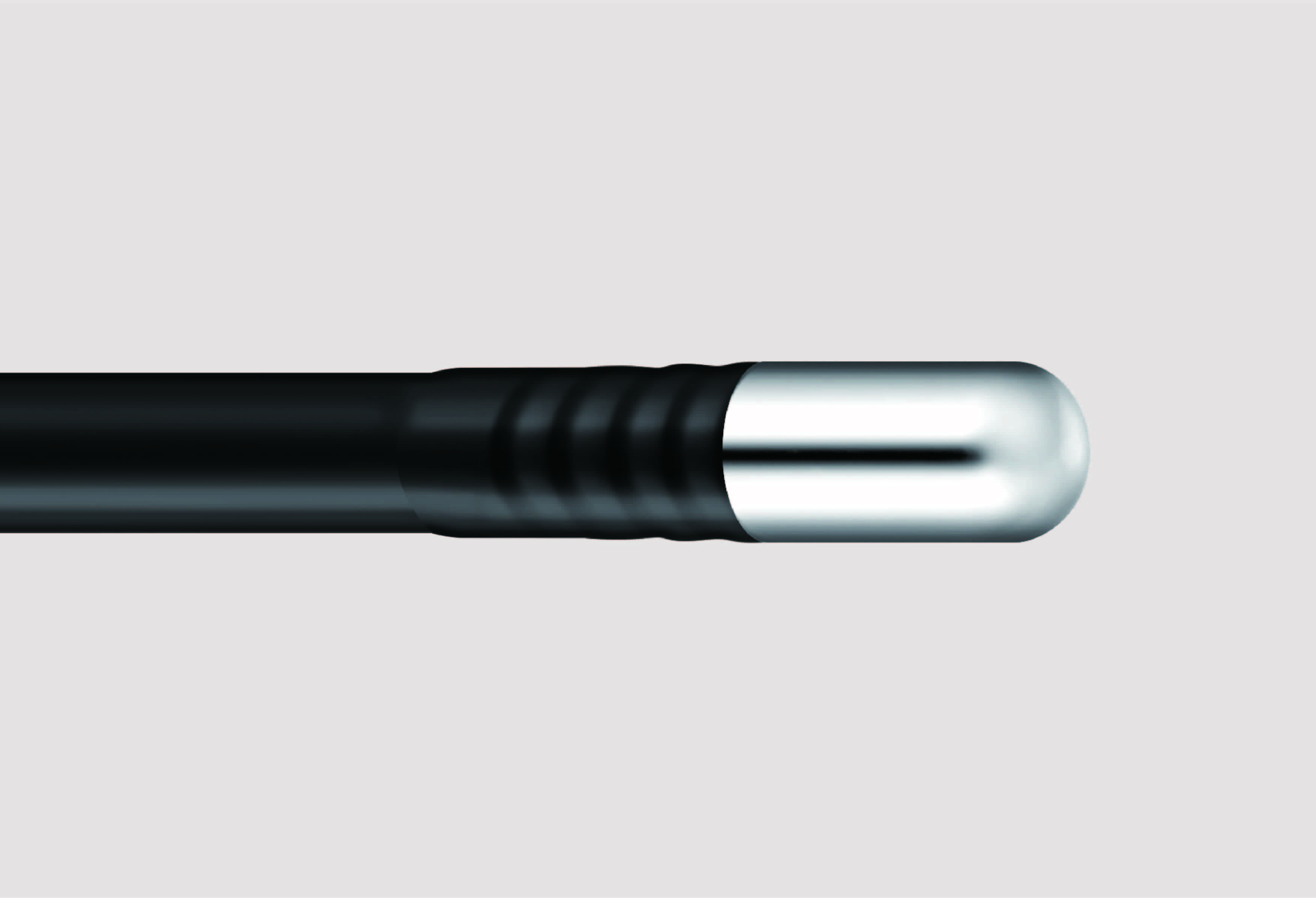

"For coagulation of blood vessels. Exchangeable coagulation tips. Standard set includes: one handle, eight electrode tips."

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Scope Of Use
AF-1810DG	Ø1.8x1000mm	≥Ø2.0mm	Bronchoscopy
AF-1815DG	Ø1.8x1500mm	≥Ø2.0mm	Gastroscopy
AF-1825DG	Ø1.8x2500mm	≥Ø2.0mm	Enteroscopy
AF-2415DG	Ø2.4x1500mm	≥Ø2.8mm	Gastroscopy
AF-2417DG	Ø2.4x1700mm	≥Ø2.8mm	Gastroscopy
AF-2421DG	Ø2.4x2100mm	≥Ø2.8mm	Colonoscopy
AF-2423DG	Ø2.4x2300mm	≥Ø2.8mm	Colonoscopy

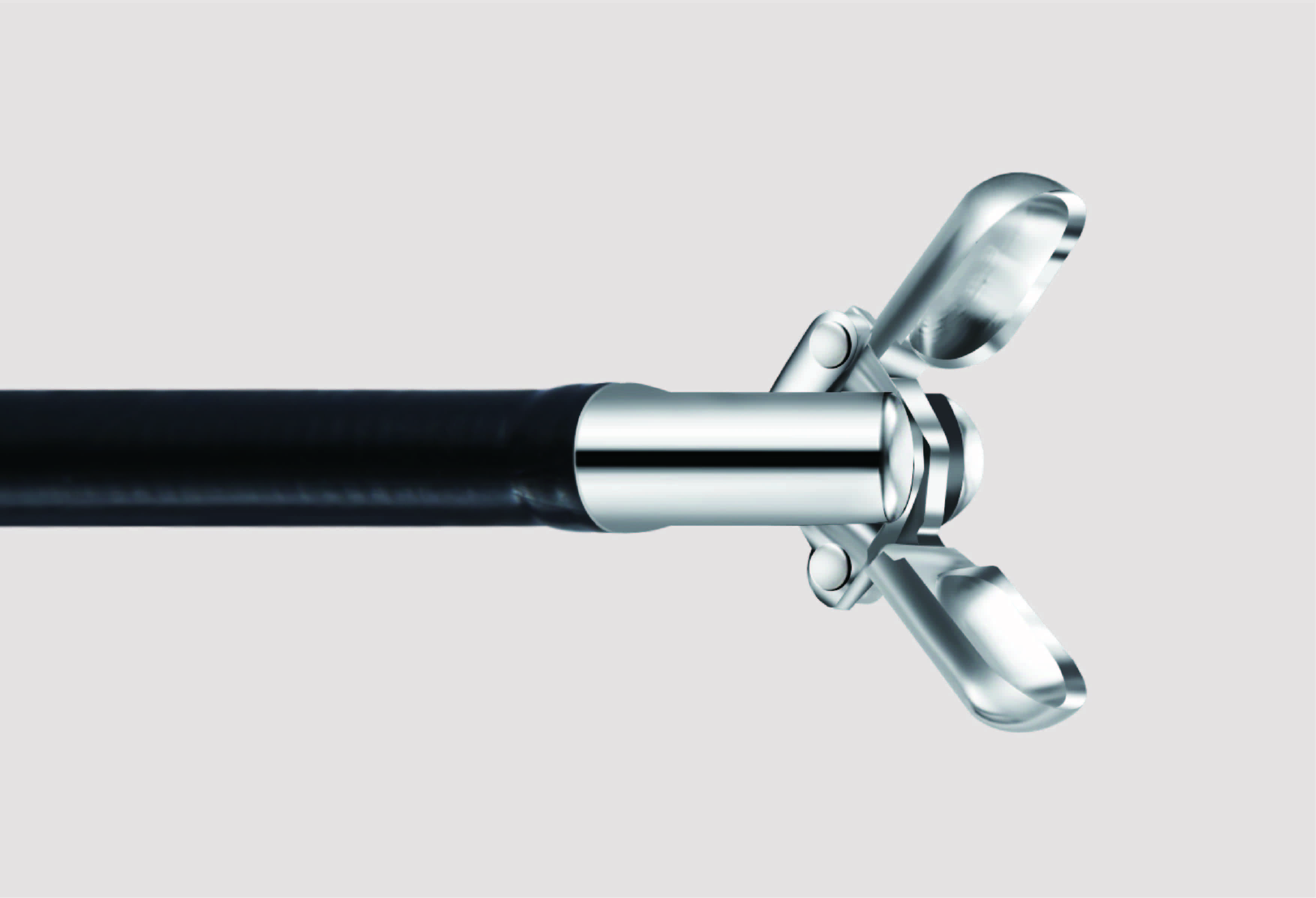

For cutting small polyps and coagulation of small vessels.

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Opening Width	Scope Of Use
AF-1810DT	Ø1.8x1000mm	≥Ø2.0mm	10/15/20mm	Bronchoscopy
AF-1816DT	Ø1.8x1600mm	≥Ø2.0mm	10/15/20mm	Gastroscopy
AF-1825DT	Ø1.8x2500mm	≥Ø2.0mm	10/15/20mm	Enteroscopy
AF-2416DT	Ø2.4x1600mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-2421DT	Ø2.4x2100mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy
AF-2423DT	Ø2.4x2300mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy

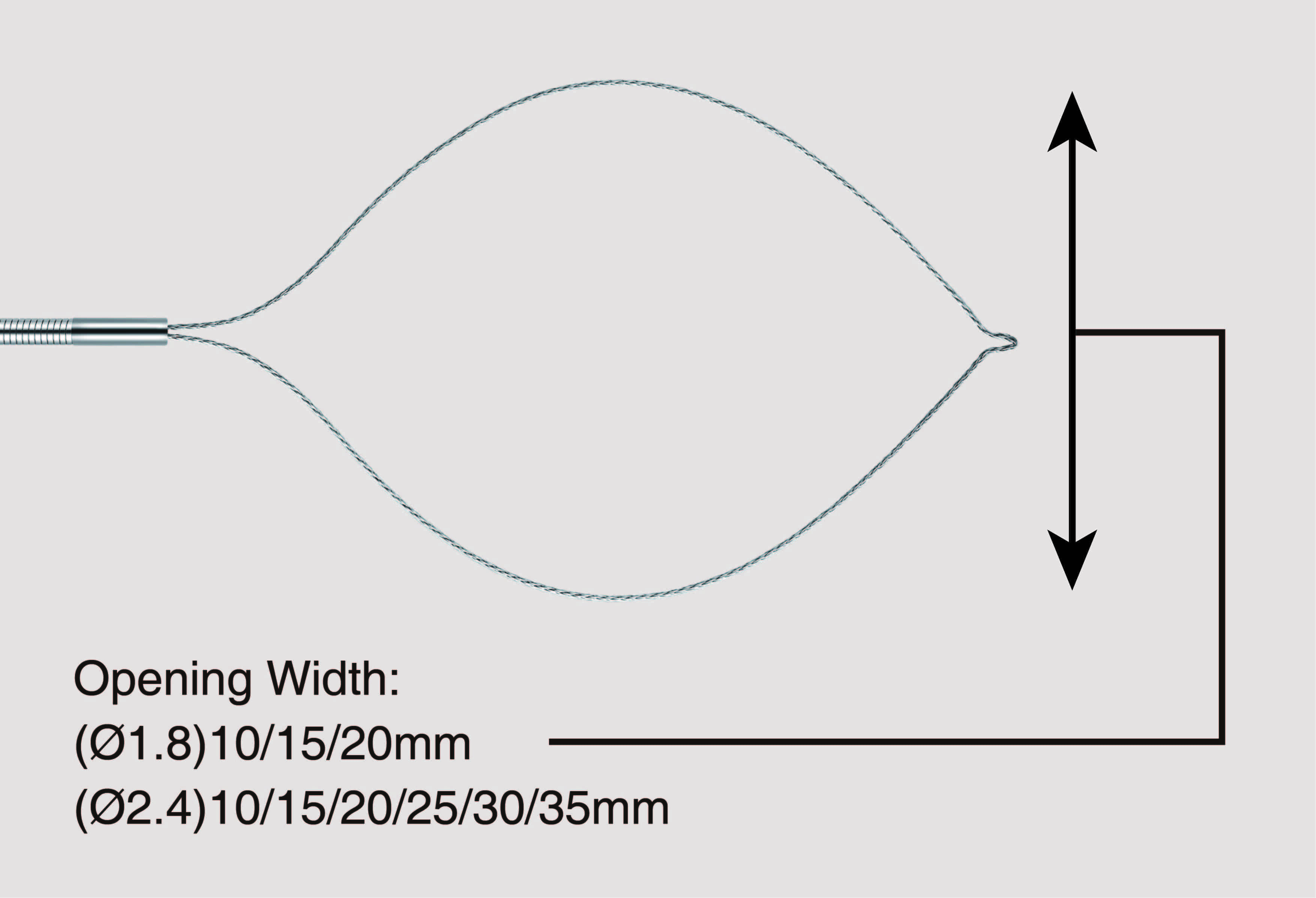

"Cut polyp with high-frequency current. It can be made rotatable. Standard set includes: one handle, two snares"
