| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Scope Of Use |
| AF-D1807BV | Ø1.8x700mm | ≥Ø2.0mm | Choledochoscopy |
| AF-D1815BV | Ø1.8x1500mm | ≥Ø2.0mm | Gastroscopy |
| AF-D1825BV | Ø1.8x2500mm | ≥Ø2.0mm | Enteroscopy |
| AF-D2415BV | Ø2.4x1500mm | ≥Ø2.8mm | Gastroscopy |
| AF-D2417BV | Ø2.4x1700mm | ≥Ø2.8mm | Gastroscopy |
| AF-D2421BV | Ø2.4x2100mm | ≥Ø2.8mm | Colonoscopy |
| AF-D2423BV | Ø2.4x2300mm | ≥Ø2.8mm | Colonoscopy |
Able to sway from side to side for deep biopsy of hard and difficult-to-access tissue.
| Item No. | Sheath Diameter | Needle Diameter | Working Length | Sheath Material |
| AF-D1908XAP | 1.7mm | 19G | 930mm | POM |
| AF-D1908XAS | 1.7mm | 19G | 930mm | Stainless Steel |
| AF-D2208XAP | 1.7mm | 22G | 930mm | POM |
| AF-D2208XAS | 1.7mm | 22G | 930mm | Stainless Steel |
| AF-D2508XAP | 1.7mm | 25G | 930mm | POM |
| AF-D2508XAS | 1.7mm | 25G | 930mm | Stainless Steel |
| AF-D1913XAP | 1.7mm | 19G | 1415mm | POM |
| AF-D1913XAS | 1.7mm | 19G | 1415mm | Stainless Steel |
| AF-D2213XAP | 1.7mm | 22G | 1415mm | POM |
| AF-D2213XAS | 1.7mm | 22G | 1415mm | Stainless Steel |
| AF-D2513XAP | 1.7mm | 25G | 1415mm | POM |
| AF-D2513XAS | 1.7mm | 25G | 1415mm | Stainless Steel |

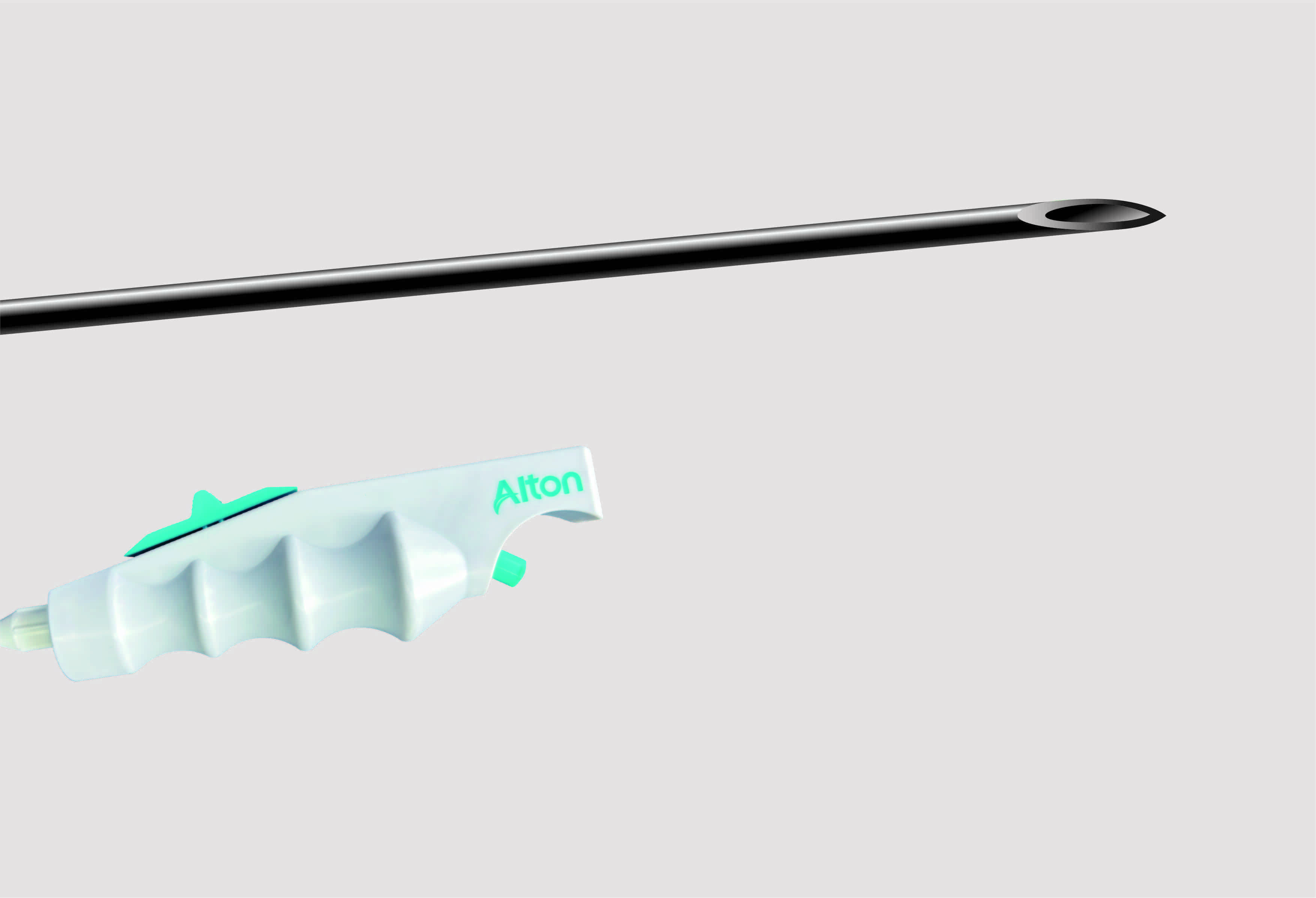

EUS-FNA refers to a technique to obtain cytological diagnosis by using fine-needle aspiration on the gastrointestinal tract wall and surrounding lesions under the real-time guidance of endoscopic ultrasound.
| Item No. | Sheath Diameter | Needle Diameter | Working Length |
| AF-D1107NQ22 | 1.1mm | 22G | 700mm |
| AF-D1109NQ22 | 1.1mm | 22G | 900mm |
| AF-D1111NQ22 | 1.1mm | 22G | 1100mm |
| AF-D1407NQ22 | 1.4mm | 22G | 700mm |
| AF-D1409NQ22 | 1.4mm | 22G | 900mm |
| AF-D1411NQ22 | 1.4mm | 22G | 1100mm |
| AF-D1407NQ20 | 1.4mm | 20G | 700mm |
| AF-D1409NQ20 | 1.4mm | 20G | 900mm |
| AF-D1411NQ20 | 1.4mm | 20G | 1100mm |
| AF-D1907NQ22 | 1.9mm | 22G | 700mm |
| AF-D1909NQ22 | 1.9mm | 22G | 900mm |
| AF-D1911NQ22 | 1.9mm | 22G | 1100mm |
| AF-D1907NQ20 | 1.9mm | 20G | 700mm |
| AF-D1909NQ20 | 1.9mm | 20G | 900mm |
| AF-D1911NQ20 | 1.9mm | 20G | 1100mm |
| AF-D1907NQ18 | 1.9mm | 18G | 700mm |
| AF-D1909NQ18 | 1.9mm | 18G | 900mm |
| AF-D1911NQ18 | 1.9mm | 18G | 1100mm |

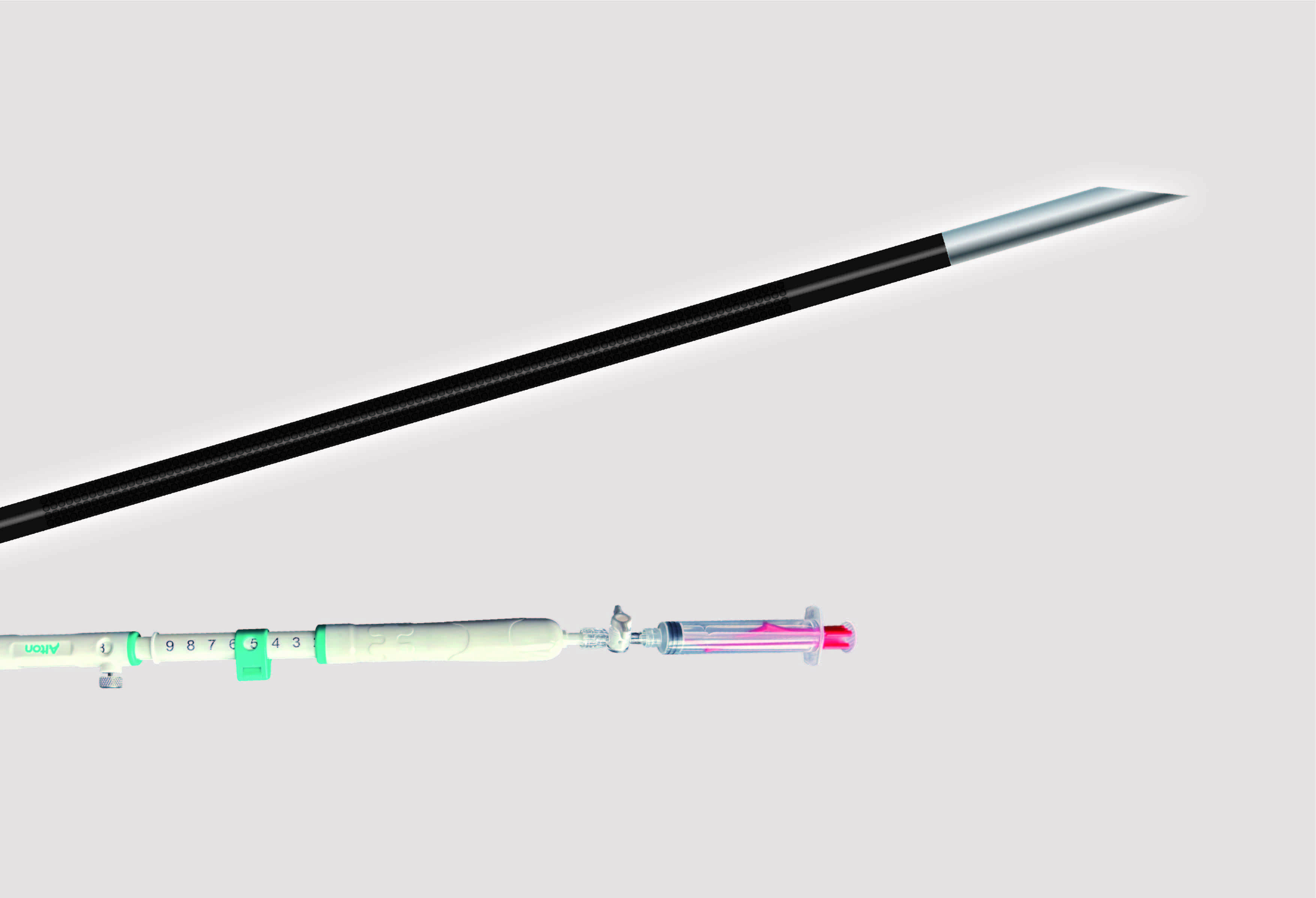

Used for lung cytology and histology biopsy.The locking feature makes the tip stable and easy to operate, protecting the working channel in retraction.
